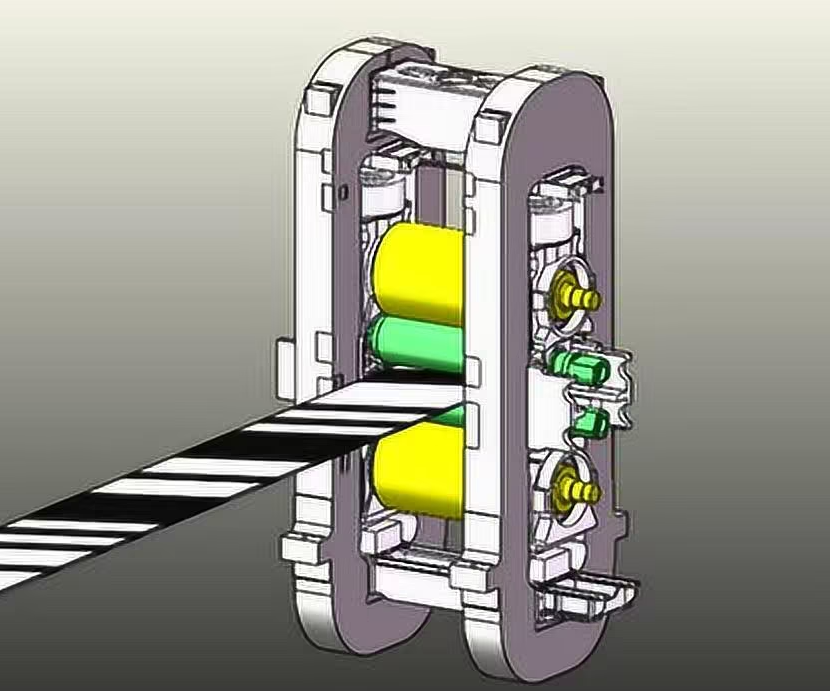

4-Hi Rolling Mill Application and characteristics
1. Suitable for common carbon steel, stainless steel, rolled steel, special aluminum or copper tape strip etc..
2. Work roll and supporting roll drive type，Can quickly adjust the strip crown, Change the contact pressure distribution between the rolls, to control the plate shape and plate convexity purposes.
3. Configurable work roll bending roller device,
4.The whole machine structure is simple, easy maintenance operation, less investment.
5. Screw down has two kinds control method, ordinary electromechanical screw down and AGC hydraulic screw down. AGC 4-hi rolling mill control accuracy, especially suitable for high precision cold-rolled strip production.
Production line process
Front coiler→(Unloading car)→Machine front device→ 4-hi main rolling mil→ Machine after the device→After the coiler (Unloading car)→according demands to arrange the uncoiler, Starting straightening machine etc.
4-Hi Rolling Mill Application and characteristics
1. Suitable for common carbon steel, stainless steel, rolled steel, special aluminum or copper tape strip etc..
2. Work roll and supporting roll drive type，Can quickly adjust the strip crown, Change the contact pressure distribution between the rolls, to control the plate shape and plate convexity purposes.
3. Configurable work roll bending roller device,
4.The whole machine structure is simple, easy maintenance operation, less investment.
1. Configurable work roll bending roller device,
2. The whole machine structure is simple, easy maintenance operation, less investment.
3. Screw down has two kinds control method, ordinary electromechanical screw down and AGC hydraulic screw down. AGC 4-hi rolling mill control accuracy, especially suitable for high precision cold-rolled strip production.
4. Suitable for common carbon steel, stainless steel, rolled steel, special aluminum or copper tape strip etc..
Production line technical parameters
| 350 Rolling Mill | 400 Rolling Mill | 450 Precision Rolling Mill | |
| Φ80
Φ320×350 |
Φ90
Φ360×400 |
Φ100
Φ400×450 |
|
| Billets Thickness | 0.6-1.0 | 1.0-1.5 | 1.0-1.8 |
| Finished Products Thickness | 0.08-0.15 | 0.1-0.6 | 0.1-0.6 |
| Steel Strip Width | Below 250 | Below 320 | Below 350 |
| Driving Mode | Supporting Roll Drive | Supporting Roll Drive | Supporting Roll Drive |
| Rolling Force | 1200 | 1600 | 2500 |
| Screw Down Mode | Electric or Hydraulic | Electric or Hydraulic | Electric or Hydraulic |
| Rolling Speed | 1.5～2 | 1.5～2.5 | 4～8 |
| 450 Rolling Mill | 500 Rolling Mill | 550 Rolling Mill | ||||||||||
| Φ175
Φ450×450 |
Φ140
Φ450×450 |
Φ90
Φ360×400 |
Φ140
Φ500×500 |
Φ180
Φ520×550 |
Φ140
Φ520×550 |
|||||||
| Billets
Thickness |
2.0-3.0 | 1.0-2.0 | 2.0-3.0 | 1.0-2.0 | 2.0-3.0 | 1.0-2.0 | ||||||
| Finished
Products Thickness |
0.3-1.0 | 0.2-0.6 | 0.3-1.0 | 0.2-0.6 | 0.3-1.0 | 0.2-0.6 | ||||||
| Steel Strip
Width |
250-350 | 250-350 | 300-400 | 300-400 | 360-450 | 360-450 | ||||||
| Driving Mode | Work roll
Drive |
Supporting
Roll Drive |
Work roll
Drive |
Supporting
Roll Drive |
Work roll
Drive |
Supporting
Roll Drive |
||||||
| Rolling Force | 3000 | 3000 | 4000 | 4000 | 5000 | 5000 | ||||||
| Screw Down Mode | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic |
| Rolling Speed | 1～3 | 4～6 | 1.5～4 | 4～8 | 1～3 | 4～6 | 1.5～4 | 4～8 | 1～3 | 4～6 | 1.5～4 | 4～8 |
| 650 Rolling Mill | 750 Rolling Mill | 900 Rolling Mill | ||||||||||
| Φ200
Φ600×650 |
Φ165
Φ600×650 |
Φ220
Φ650×750 |
Φ175
Φ650×750 |
Φ230
Φ650×900 |
Φ180
Φ750×900 |
|||||||
| Billets Thickness | 2.0-4.0 | 1.0-2.5 | 2.0-4.0 | 1.5-3.0 | 2.0-2.75 | 1.0-2.75 | ||||||
| Finished Products
Thickness |
0.3-1.5 | 0.2-0.6 | 0.5-1.0 | 0.3-0.6 | 0.4-1.0 | 0.3-0.6 | ||||||
| Steel Strip Width | 450-580 | 450-580 | 550-680 | 550-680 | 600-800 | 600-800 | ||||||
| Driving Mode | Work roll
Drive |
Supporting
Roll Drive |
Work roll
Drive |
Supporting
Roll Drive |
Work roll
Drive |
Supporting
Roll Drive |
||||||
| Rolling Force | 6000 | 6000 | 7000 | 7000 | 8000 | 8000 | ||||||
| Screw Down Mode | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic | Electric | Hydraulic |
| Rolling Speed | 1～3 | 4～6 | 1.5～4 | 4～8 | 1～3 | 4～6 | 1.5～4 | 4～8 | 1～3 | 4～6 | 1.5～4 | 4～8 |
