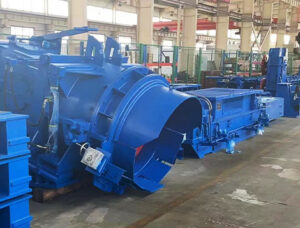

Laying Head of Wire Rod Mill driving gearbox adopts to welding structure. The gear and bearings in the box are thin oil central lubrication process. Spinning head is installed in the safety guard. Centerline down to 10 after the water cooling device of finishing mill group and pinch roll. Wire Rod Mill Laying head does the circular motion to change the rolled metal from the pinch roll pushed to the 1,080 mm diameter spiral coil, and the tile the spiral coil to scattered volume cooling roller bed(downstream equipment), then fall into the scattered volume cooling conveyor.
Wire Rod Mill Laying head driving gearbox adopts to welding structure. The gear and bearings in the box are thin oil central lubrication process. Spinning head is installed in the safety guard. Centerline down to 10 after the water cooling device of finishing mill group and pinch roll. Wire Rod Mill Laying head does the circular motion to change the rolled metal from the pinch roll pushed to the 1080mm diameter spiral coil, and the tile the spiral coil to scattered volume cooling roller bed(downstream equipment), then fall into the scattered volume cooling conveyor.
Equipment Main Technical Performance
Type: Horizontal laying head wire rod diameter: Φ5.5~14mm
Coil diameter: Φ1080mm
Maximum spinning speed: 90m/s
Speed increasing ratio: 1.289
Motor type: DC motor Z4-250-41
Motor Power: 110kW
Motor speed: 750/1500 r/min
Lubrication: thin oil central lubrication
Oil pressure: 0.35MPa
Total consumption: 100 r/min
Oils: Mobil 525
Cleanliness: 10μ
Laying head cooling water:
Water pressure:
0.2~0.4 MPa (clean circulating water)
Consumption: 5m3/h
Service:
– We can provide foundation layout and arrangement diagram
– Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines
– Competitive price & excellent quality
– Our machines are easy operation and maintenance
– Lower investment
– Steady performance
– Products are customized for different needs
– Production capability can be adjusted according to customers’ request
– Low energy consumption
As a professional wire rod mill laying head manufacturer in China, we can supply designing, manufacturing, installation, commissioning of the equipment with “turn-key” service. We can also design, manufacture and revamp other non-standard equipment according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
Parameter of Laying head
| Type | Outlet wire rod
speed(m/s) |
Outlet wire rod
diameter(Φmm) |
Motor power
(DC KW) |
Steel grade |
| 84m/s | 35-80 | 5.5-14 | 75-160 | Low/medium carbon steel,
structural steel, low alloy steel, stainless steel, valve steel |
| 90m/s | 40-90 | 5.5-16 | 90-200 | |
| 135m/s | 60-110 | 5.5-18 | 120-220 | |
| 140m/s | 80-120 | 5.5-20 | 160-220 |
