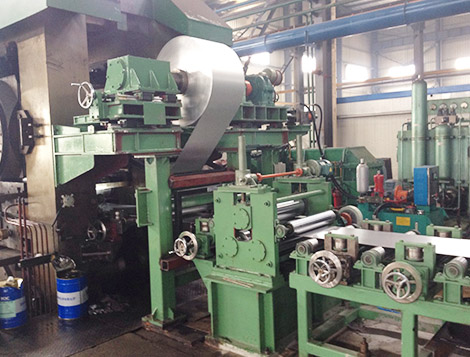

Composite Plate Rolling Mill Production Line Process
Front coiler→(Unloading car)→Machine front device→ 4-hi main rolling mil→ Machine after the device→After the coiler (Unloading car)→according demands to arrange two or three set unreeling machine, Starting straightening machine etc.
1、Applicable to two or three layers of composite rolling. Such as copper – steel, copper -stainless steel, aluminum – steel, aluminum – steel – aluminum material etc.
2、Working roller drive.
3、Can be configured work roll bending roller device, can quickly adjust the roller convexity, Changing the contact pressure distribution between rollers, To achieve the purpose of the control panel shape.
4、The complete set machine structure is simple, easy maintenance, less investment.
2. Working roller drive.
3. Can be configured work roll bending roller device, can quickly adjust the roller convexity, Changing the contact pressure distribution between rollers, To achieve the purpose of the control panel shape.
4. The complete set machine structure is simple, easy maintenance, less investment.
5. The screw-down device is divided into Electric screw-down gear and AGC (Automatic Gauge Control) hydraulic screw-down, AGC 4-hi mill with high control accuracy, Particularly suitable for the production of high-precision composite strip steel.
Production Technology Parameters
| Medium-sized composite mill | φ330/φ760×550-1300 | 1.5-4.0(Finished product range) |
| Small-sized composite mill | φ230/φ600×350-700 | 0.5-1.0(Finished product range) |
