Pinch Roll:

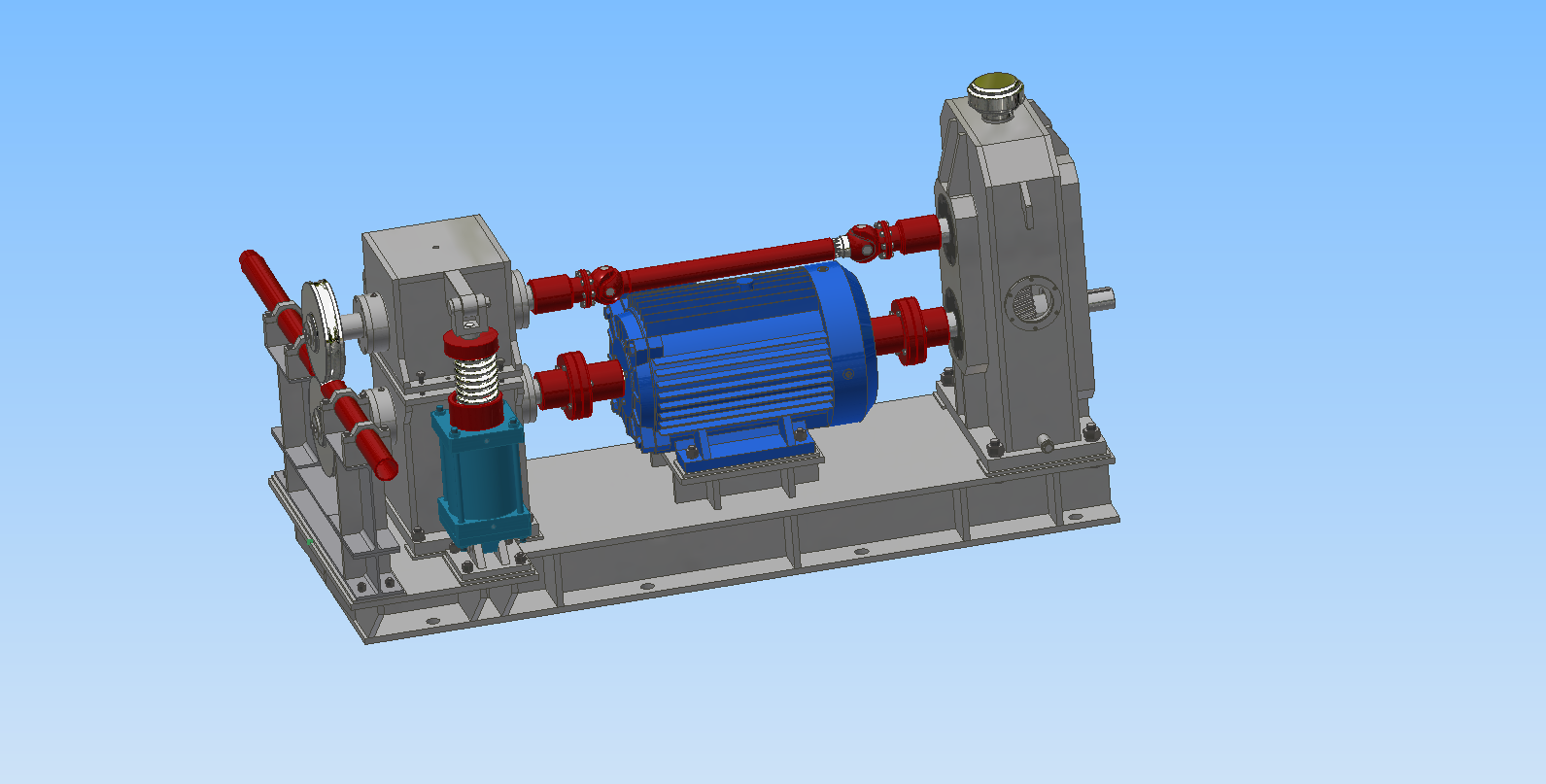

It is the horizontal cantilever structure. It has a double roll device and one air cylinder which is used to control roll up and down synchronous clamp. Pinch roll DC motor is used to improve drive speed by two-stage cylindrical gear. Up and down roll is installed respectively at two swing arm. There is one air cylinder which drives them up and down roll synchronous close to or leave rolling line by a group of the crank-link mechanism. There is equipped with adjustable limit equipment to adjust pinch roll max opening degree and the minimum center distance between up and down rolling so that could adjust the clamping force and wire rod not to fast simultaneously. Pinch roll drive gearbox used welding structure. The gear and bearings used thin oil central lubrication process. And the bearings are used filmatic bearing and high-speed roll thrust bearing. Pinch roll is long running at regular work and its speed is set by process requirement. It can clamp the head, end or whole wire rod on the basis of process requirement.
It is the horizontal cantilever structure. It has double roll device and one air cylinder which is used to control roll up and down synchronous clamp. Pinch roll DC motor is used to improve drive speed by two-stage cylindrical gear. Up and down roll are installed respectively at two swing arm.
Pinch roll is long running at regular work and its speed is set by process requirement. Pinch roll can clamp the head, end or whole wire rod on the basis of process requirement.
Service:
– We can provided foundation layout and arrangement diagram
– After-sales service provided, we will send engineers to your factory to install and debug the machines
– Competitive price & excellent quality
– Our machines are easy operation and maintenance
– Lower investment
– Steady performance
– Products are customized for different needs
– Production capability can be adjusted according to customers’ request
– Low energy consumption
As a professional Pinch Roll manufacturer in China, We can supply designing, manufacturing, installation and commissioning of the equipment with“turn-key”service. We can also design, manufacture and revamp other non-standard requirement according to the requirements of users.
Please send us more information about your project, we would like to give you our proposal immediately after getting your details. Sincerely welcome you to come and visit our plant.
Equipment Characteristic
Feeding specification: Æ5.5~14mm
Feeding rate: 25~75m/s
Pinch roll specification: Æ158.8/Æ142.9´62mm; Æ158.8/Æ142.9´62mm
Max gripping force: 350N
Maximum line velocity: 80m/s
Speed increasing ratio: 6.92
Motor: Z4-180-41 (DCZ4-180-41)
Motor power: 55kW
Motor speed: 1500/3000 r/min
Rolling lubricating system: Thin oil central lubrication
Oil pressure: 0.35MPa
Total consumption: 100r/min
Oils: Mobil 525
Cleanliness: 10m
Pinch roll’s cooling water:
Water pressure: 0.6Mpa(turbid circulating water)
Consumption: 2m3/h
